SPRINKLER
(Pendent/Sidewall/Upright)

Temperature Rating	:	68?
Glass Bulb Colour	:	Red
Thread Size	:	NPT1/2" or R1/2"
Max Service Pressure	:	175psi
Glass Bulb Diameter (mm)	:	05

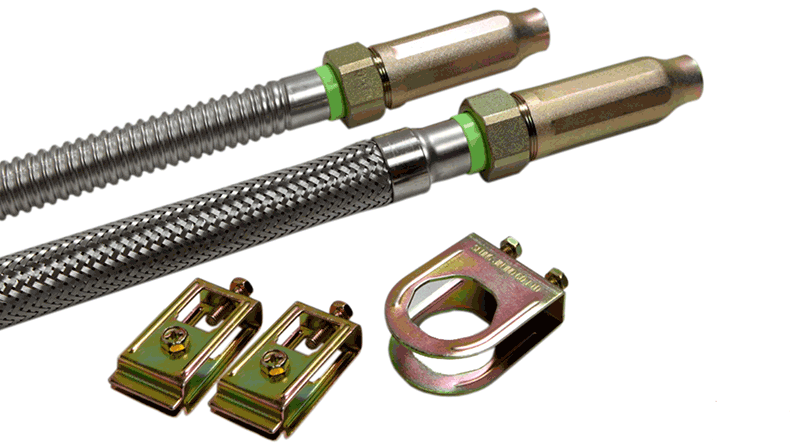

Flexible sprinkler Hose

TECHNICAL DATA
Available product length and type	700mm to 1800 (28" to 70")
Available square bar length	700mm to 1500 (28" to 59")
Max. Working pressure	14 kgf/cm2 (200psi)
Max.ambient temperature	107? (225?)
Minimum installation Bending Radius	75mm (3")
Bending Angles (Flow Direction)	up to 180 Degree
Largest K factor for 1/2 inch outlet	5.6[gpm/(psi)1/2]
Largest K factor for 3/4 inch outlet	14.0[gpm/(psi)1/2]
Intended use	Wet system and dry system
